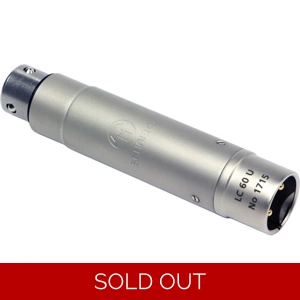

Schoeps LC 60 U Active Low-Cut Filter BRAND NEW
WAS $239.00 NOW $179.00 WHILE STOCKS LAST
The Schoeps LC 60 U Active Low-Cut Filter is an electronic filter that can be inserted anywhere in the microphone cable path.
With a roll-off of 18 dB / octave, the LC 60 U suppresses low-frequency acoustic interference such as wind noise, or solid-borne infrasonic noise such as handling noise during boom operation without detracting from the sound quality of voice recordings.
This filter can help prevent overloading the input circuit to which a micro phone is connected.
The LC 60 U features 60 Hz cut-off frequency.
The specifications of the Schoeps microphones (sold separately) such as sensitivity, noise, source impedance, remain nearly unchanged with the LC 60 U.
This low-cut filter is suitable not only for Schoeps microphones but also for phantom-powered microphones of other manufacturers, provided that they have a current consumption of at least 2 mA. Otherwise the maximum sound pressure level would be reduced.
Filter | In-line low-cut, Butterworth, 18 dB/octave |
Frequency | Cut-off frequency: 60 Hz |
Output Impedance | 40 Ω |
Maximum Output Voltage | 1 V |
Diameter | 0.79" (20.00 mm) |
Length | 3.70" (94.00 mm) |
