Length

90.5mm (3.6")

Application

Cardioid Boundary Layer Condenser Microphones designed for a wide range of installed pro sound, conferencing or security situations.

Type

Condenser (Back Electret)

Polar Pattern

Cardioid

Frequency Response

100 Hz - 16 KHz

Sensitivity

-37dB +/- 3dB @ 1 KHz (0dB = 1 V/Pa)

Impedance

200 Ohms

S/N Ratio

69dB(A)

Maximum Sound Pressure Level

125db at 1KHz 1% T.H.D.

Power Requirements

9 - 48 volts Phantom Power

Termination

3 Pin Male XLR

Finish

Satin Black

Dimensions

Hole cut out Diameter 24mm (.94") Visible Height 22mm (.87") Head Diameter 31mm (1.22")

Weight

103 g (3.6oz)

Architects and engineer specifications

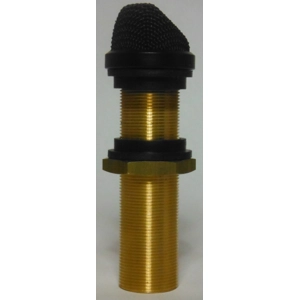

The Electret Condenser microphone has a Cardioid Polar Pattern. It is constructed from robust high quality brass with a low profile steel mesh top. The microphone is fitted with a Phantom Power Adaptor accepting 9 to 48 volts DC . The Phantom Power Adaptor also includes filters which will eliminate all GSM frequencies from 800-1200 MHz and is terminated with a male 3 pin XLR, Sensitivity -37dB +- 3dB @ 1Khz (0dB=1V/Pa), impedance 200 Ohms, total harmonic distortion (THD) at an operating level of 120dB is less than 1%.
