In very good condition, both cosmetically and technically.
I can arrange safe and secure delivery to just about anywhere in the World for a realistic price.

OVERVIEW

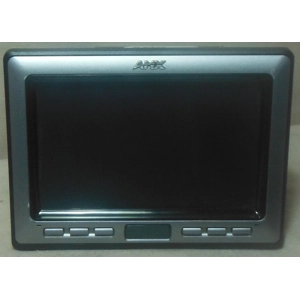

The NXD-CV5 combines incredibly compact size, wall/flush mount flexibility and powerful control features. In places where space is critical, the 5" Modero integrates a small footprint and a 16x9 aspect ratio for advanced multimedia viewing capability and one-touch control options.

COMMON APPLICATION
Designed to fit discreetly on the wall, the 5" Modero^® Widescreen is the perfect solution for small spaces, such as home foyers and hallways, kitchens, bedrooms, and bathrooms or other surface mount locations like lecterns and podiums.

FEATURES

• 5" active-matrix display with 16:9 aspect ratio
• Screen Resolution (HW): 800 x 480 pixels
• Display colors: 256K (18-bit color depth)
• Anti-glare Overlay
• Supports analog stereo audio, Composite Video and S-Video with optional NXA-AVB/Ethernet Breakout Box
• Playback of MP3 and WAV audio files
• Built-in Speakers (2) and microphone
• Motion Sensor (PIR) and Light Sensor
• 128 MB SDRAM / 256 MB CompactFlash Memory or more
• Wired 10/100 Ethernet

SPECIFICATIONS

DIMENSIONS (HWD)
(10.5 cm x 14.2 cm x 8.2 cm)

WEIGHT
(798 g)

POWER REQUIREMENTS

• Constant current draw: 650 mA @ 12 VDC
• Startup current draw: 1.3 A @ 12 VDC

MEMORY

• 128 MB SDRAM
• 256 MB CompactFlash

PANEL LCD PARAMETERS

• Aspect Ratio: 16x9
• Brightness (luminance): 170 cd/m2
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 250:1
• Display colors: 256K colors (18-bit color depth)
• Dot/pixel pitch: 0.14 mm
• Panel type: TFT Color Active-Matrix
• Screen Resolution: 800 x 480 pixels (HV) @ 60 Hz frame frequency
• Video format: NTSC, PAL, and SECAM
• Viewing dimensions: 4.3" x 2.58" (109.2 mm x 65.2 mm)

VIEWING ANGLE
Up/Down/Left/Right: 85/85/85/85

IR RECEPTION ANGLE

• Horizontal: + 25° (left and right from center)
• Vertical: + 15° (up and down from center)

MOTION SENSOR (PIR) ACTIVATION

• Horizontal: + 25° (left and right from center)
• Vertical: + 15° (up and down from center)

SUPPORTED AUDIO SAMPLE RATES
48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz, 11025Hz, and 8000Hz

FRONT PANEL COMPONENTS

• Light Sensor: Photosensitive light detector for automatic adjustment of the panel brightness
• Motion Sensor (PIR): Proximity Infrared Detector to wake the panel when panel is approached
• IR Receiver: 38 kHz and 455 kHz AMX IR frequencies
• Sleep Button: Pushbutton (gray) provides both access to the Setup and Calibration page and toggles the panel between a “sleep" or “wake" state
• Microphone: Used for intercom applications (requires the NXA-AVB/ETHERNET Breakout Box for analog communication)
• Speakers: Stereo output with a frequency response of 500 Hz - 7 kHz
• Buttons: 6 programmable push-buttons

SIDE PANEL CONNECTORS

• Power: 2-pin 3.5 mm mini-Phoenix connector
• Ethernet 10/100 Port: Single RJ-45 port for 10/100 Mbps communication. LEDs show communication activity, connections, speeds, and mode information: L/A-link/activity - Green LED lights On when the Ethernet cables are connected and terminated correctly and then blinks when receiving Ethernet data packets. SPD-speed - Yellow LED lights On when the connection speed is 100 Mbps and turns Off when the speed is 10 Mbps.
• Stereo Output Connector: Stereo output through a 3.5mm minijack (for use with external speakers or headphones)
• Mini-USB Connector: 5-pin Mini-USB connector used for programming, firmware update, and touch panel file transfer between the PC and the target panel
• USB Connector: Type A USB port connects an external keyboard or mouse device for use with Virtual PC applications
• Audio/Video Connector: RJ-45 connection for A/V signals (via CAT5) between the NXA-AVB/ETHERNET Breakout Box and the panel
