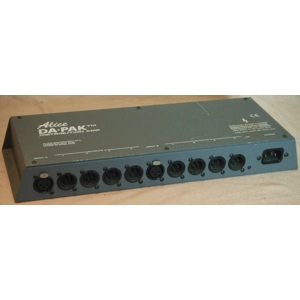

The Alice DA-Pak is a one stereo pair in, four stereo pairs out audio distribution amplifier primarily intended to feed up to four stereo inputs from a single primary source with no loss of audio signal level or quality. Applications include a mixer output splitter for feeding several cassette or minidisc recorders from a single stereo mixer output or a record distribution amplifier. Housed in a convenient 1U aluminium case, the DA-Pak can be free standing, easily mounted into a woodwork system, or fitted into a rack with use of the Alice Rack- Panel. Its performance is equal to Alice`s rack mounting distribution amplifiers, with its gain fixed to unity. Input and outputs are balanced although outputs may be individually wired unbalanced if required.

Inputs impedance: 20k ohms balanced Frequency response: 20Hz - 20kHz +0dB/-0.1dB Common mode rejection: >60dB typical Noise: -100db (RMS 30Hz - 15kHz ref + 8dBu output) Distortion (THD): <0.006% (1kHz +8dBu input) Max input level: +28dBu Gain: Fixed at unity 0.05db Output impedance: <1 ohm balanced and floating Max output level: +27dBu into 5K ohms +23dBu into 600 ohms Phase shift (600ohm load): <1 (20Hz) <5 (20Hz) Mains voltage specification: 110/115v AC 60Hz or 220/230v AC 50Hz 10VA Dimensions (mm): 379(w) x 134(d) x 44(h) Weight (boxed): 1.50kg Rack-Panel: RPK1 (0dBu = 0.775 volts RMS)
