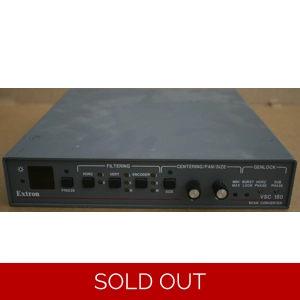

Video input

Number/signal type

1: VGA, 1 Mac analog RGBHV, RGBS, RGsB

Connectors

VGA: 15-pin HD female

Mac

15-pin D female

Nominal level(s)

Analog: 0.7V p-p

Minimum/maximum levels

Analog: 0V to 2.0V p-p with no offset at unity gain

Impedance

75 ohms: or High Z (DIP switch-selectable)

Horizontal frequency

Autoscan 24 kHz to 70 kHz

Vertical frequency

Autoscan 50 Hz to 120 Hz

Resolution range

Autoscan 560 x 384 to

1280 x 1024

Note: 1280 x 1024 is available at 60 Hz only.

External sync (genlock)

0.3V to: 1.0V p-p

Video processing

Encoder

10 bit digital

Digital sampling

24 bit, 8 bits per color;: 50 MHz standard

Colors

16.8 million

Horizontal filtering

2 levels (selectable)

Vertical filtering

3 levels (selectable)

Encoder filtering

3 levels (selectable)

Video output

Number/signal type

1: RGBHV/RGBS 15.75 kHz analog, or

1: component video, or

1 S-video: NTSC, 15.75 kHz, 525 lines , or

PAL, 15.5 kHz, 625 lines

1 composite video: NTSC, 15.75 kHz, 525 lines , or

PAL, 15.5 kHz, 625 lines

Connectors

RGBHV/RGBS: 6 BNC female

S-video: 1 4-pin mini-DIN female

Component video (YUV): 3 BNC female (uses the R, G, and B BNCs)

NTSC/PAL composite: 1 BNC female

Minimum/maximum levels

0.0V to 1.0V p-p

Impedance

75 ohms

Sync

Input type

Autodetect: RGBHV, RGBS, RGsB

Output type

RGBHV, RGBS

Genlock connectors

2 BNC female

Standards

NTSC 3.58, PAL

Input level

1.5V to 5.0V p-p

Output level

TTL: 5.0V p-p

Input impedance

75 ohms

Output impedance

75 ohms

Polarity

Negative

Control/remote — scan converter

Serial control port

RS-232, 9-pin female D connector

Baud rate and protocol

9600, 8-bit, 1 stop bit, no parity

Serial control pin configurations

2 = TX, 3 = RX, 5 = GND

General

Power

100VAC to 240VAC, 50/60 Hz, 40 watts, internal, auto-switchable
