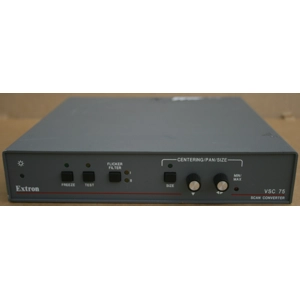

Video input

Number/signal type

1: VGA, 1 Mac analog RGBHV, RGBS, RGsB

Connectors

     VGA

15-pin HD female

     Mac

15-pin D female

Minimum/maximum level(s)

Analogue: 0V to 2V p-p with no offset at unity gain

Impedance

75 ohms or high Z (DIP switch selectable)

Horizontal frequency

Autoscan 24 kHz to 70 kHz

Vertical frequency

Autoscan 50 Hz to 120 Hz

Resolution range

Autoscan 560 x 384 to 1280 x 1024

Note: 1280 x 1024 is available at 60 Hz only.

Video processing

Encoder

10 bit digital

Digital sampling

24 bit, 8 bits per color;: 50 MHz standard

Colors

16.8 million

Horizontal filtering

1 level

Vertical filtering

2 levels (selectable)

Video output

Number/signal type

1 S-video: NTSC, 15.75 kHz, 525 lines ; or PAL, 15.5 kHz, 625 lines

1 composite video: NTSC, 15.75 kHz, 525 lines ; or PAL, 15.5 kHz, 625 lines

Connectors

S-video: 1 4-pin mini-DIN female

Composite video: 1 BNC female

Minimum/maximum levels

0.0V to 1.0V p-p

Impedance

75 ohms

Sync

Input type

Autodetect: RGBHV, RGBS, RGsB

Standards

NTSC 3.58, PAL

Input level

1.5V to 5V p-p

Input impedance

75 ohms

Control/remote — scan converter

Serial control port

RS-232, 9-pin female D connector

Baud rate and protocol

9600, 8-bit, 1 stop bit, no parity

Serial control pin configurations

2 = TX, 3 = RX, 5 = GND

Power

100VAC to 240VAC, 50/60 Hz, 40 watts, internal, auto-switchable
